ASPEKT 1800

casement windows

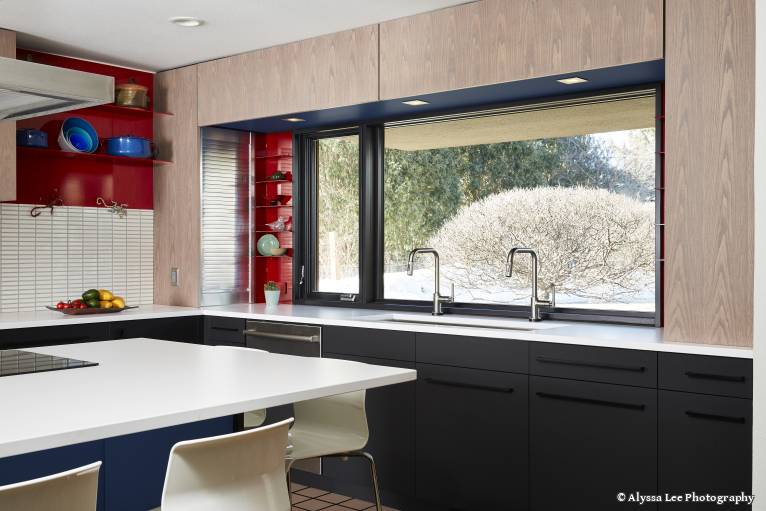

© Alyssa Lee Photography

Unique features to make your life better

up to
CW-PG100
 NAFS (PG)

up to
40db
 ASTM E90 Acoustical (STC)

down to
0.17
 U-value*

Build a better window: REHAU Aspekt casement window system offers unique features to make your life - and your customers' lives - easier.
Choose Aspekt for better energy performance, simpler multi-lite configurations, installation flexibility and superior air and water tightness for increased comfort and longevity.
With Aspekt, casement, awning, and fixed units as single or multi-lite configurations are possible. The system is available in white, beige or clay and can be laminated with solid color or wood-grain foils.

Features

  • Proprietary triple-seal technology for optimal air and water tightness.
  • Continuous frame concept for multi-lite configurations within one frame.
  • Frame options for greater installation flexibility.
  • High-definition finish for weather and stain resistance and ease of maintenance.
  • Design accepts a variety of screen styles including FlexScreen

Performance

Test ResultsDescription
NAFS (PG)up to CW-PG100
ASTM E90 Acoustical (STC)up to 40 dB
U-value(*based on simulation)down to 0.17*
Missing Title
1
1

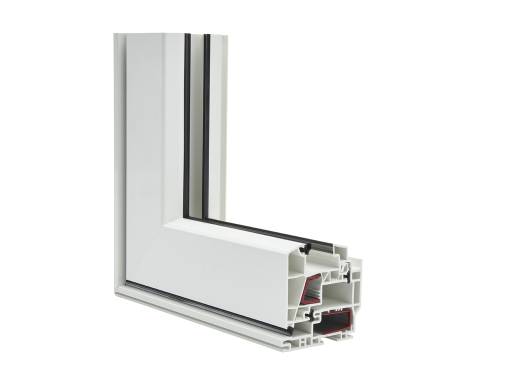

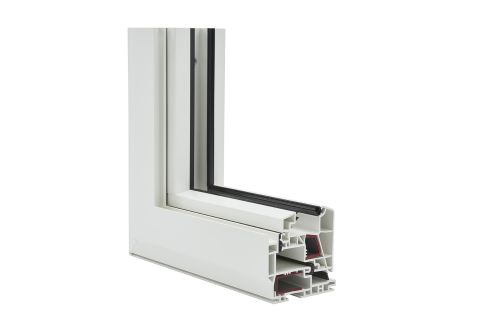

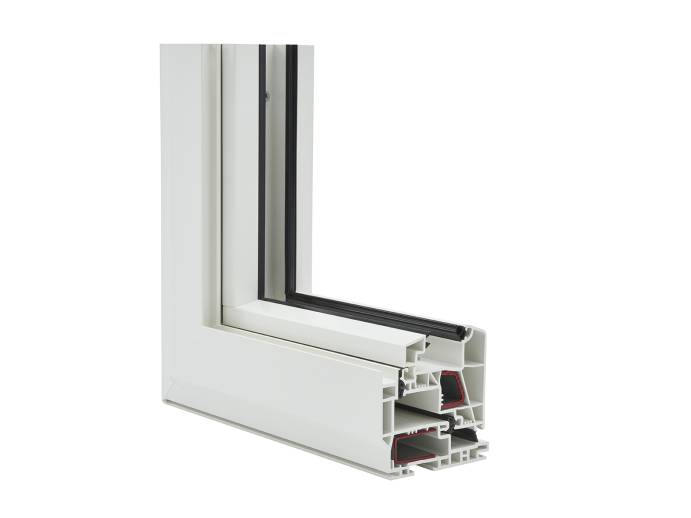

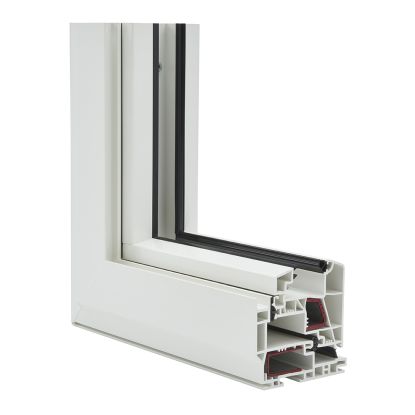

Proprietary, highly engineered triple-seal technology

Provides optimal compression to improve the system’s insulating properties and to ensure long service life

2
2
3 1/4 in (83 mm), 3 3/8 in (86 mm), 3 1/2 in (89 mm) , frame depths with 1 in (25 mm) nailing fin set-back

 Allow for application in commercial as well as residential wall constructions

3
3
Up to 1 3/8 in (35 mm) glazing capability

 Accomodates triple glazing enhancing thermal and acoustical performance

4
4
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

5
5
Continuous frame design

Allows for greater design flexibility and manufacturing efficiencies

6
6
Frame design

Accepts a variety of screen styles including FlexScreen

1
Proprietary, highly engineered triple-seal technology

Provides optimal compression to improve the system’s insulating properties and to ensure long service life

2
3 1/4 in (83 mm), 3 3/8 in (86 mm), 3 1/2 in (89 mm) , frame depths with 1 in (25 mm) nailing fin set-back

 Allow for application in commercial as well as residential wall constructions

3
Up to 1 3/8 in (35 mm) glazing capability

 Accomodates triple glazing enhancing thermal and acoustical performance

4
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

5
Continuous frame design

Allows for greater design flexibility and manufacturing efficiencies

6
Frame design

Accepts a variety of screen styles including FlexScreen
