ICONIC 700

hung-slider windows

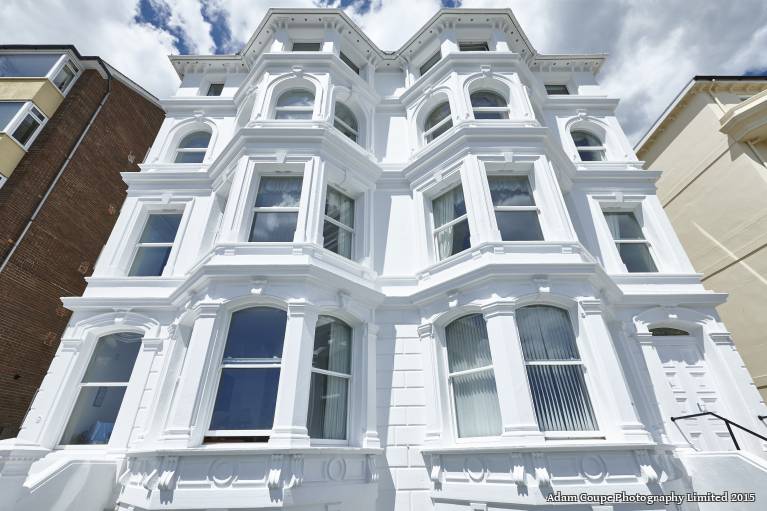

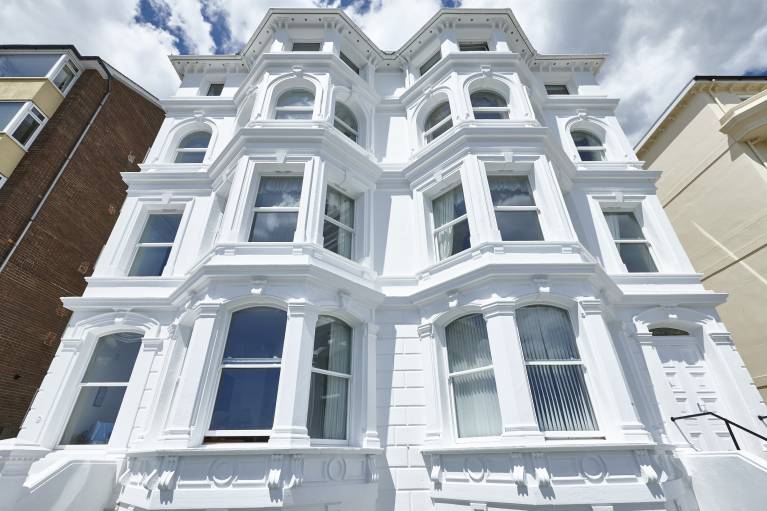

© Adam Coupe Photography Limited 2015

The most comprehensive hung-slider replacement solution

up to
CW-PG70
 NAFS (PG)

up to
XXdb
 ASTM E90 Acoustical (STC)

down to
0.17
 U-value*

The REHAU System 700 Hung-Slider Window design is one of the most comprehensive hung-slider replacement window designs on the market.
Providing five styles with a variety of design and performance options, this versatile design is an excellent choice for upscale residential and light-commercial applications.
With the System 700 design, single hung, double hung, single slider, double slider and fixed configurations are possible. Available in white, beige or clay and can be laminated with solid color or wood-grain foils.

Baby boy in fathers arms looking through and touching window
Weblics®
CSS-Only
Superior Window System
Weblics®
CSS-Only

Missing Gallery

Features

  • Interior glazing allows for easy installation (glass can also be replaced from inside)
  • A flat bottom frame makes it easy to install in stucco or masonry openings
  • Chambered frame provides positive water drainage

Performance

Test ResultsDescription
NAFS (PG)up to CW-PG70
Acoustical (STC)up to STC 39; OITC 32
ASTM + TAS *Impact Resistant DP-60 (HVHZ)
U-value**down to 0.17

* Single Hung, Fixed
**based on simulation

Missing Title
1
1

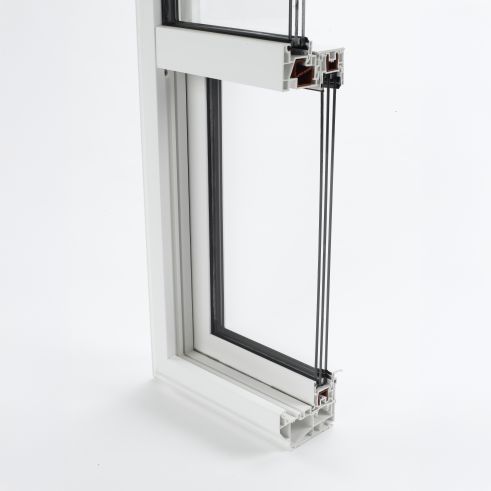

Reinforcements for main profiles

Boost structural performance and element sizes

2
2
Up to 1 in (25 mm) glazing capability

Provides excellent acoustical and energy performance properties to meet current standards

3
3
3 1/4 in (83 mm) frame depth with internal/external accessory grooves

Provide flexibility for new construction and retrofit

4
4
Main profiles engineered with multiple chambers

Increase strength, energy performance and allow efficient water drainage

5
5
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

6
6
Internal sash glazing

Satisfies market preference and increases ease and safety of glass replacement

1
Reinforcements for main profiles

Boost structural performance and element sizes

2
Up to 1 in (25 mm) glazing capability

Provides excellent acoustical and energy performance properties to meet current standards

3
3 1/4 in (83 mm) frame depth with internal/external accessory grooves

Provide flexibility for new construction and retrofit

4
Main profiles engineered with multiple chambers

Increase strength, energy performance and allow efficient water drainage

5
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

6
Internal sash glazing

Satisfies market preference and increases ease and safety of glass replacement

Flexible design and MOSQUITO?!?! Text

Accepts a variety of screen styles including FlexScreen

Missing Title
Missing Title

Missing Picture

Downloads

System 700 hung, slider, fixed windows sell sheet
System 700 windows with PTAC louver sell sheet
System 700 hung, slider windows specification
